材質：黃銅或黃銅鍍鎳、不銹鋼
標準：BS6121-1-2005
應用：BW工業用電纜密封接頭銅質戶內密封接頭適用于各種型號的SWA電纜，通過鎧裝電線來保護電纜的機械維護性和電力傳輸?shù)难永m(xù)性。
Material: Brass or Brass, nickel plated，Staninless steel
Standard: BS6121-1-2005
Application: Dry Indoor. For use with all types of SWA extruded Bending Cable.
Function: Provides mechanical cable retention& electrical continuity via armoured wire termination.
Cable Type: SWA Extruded Bending Cable.

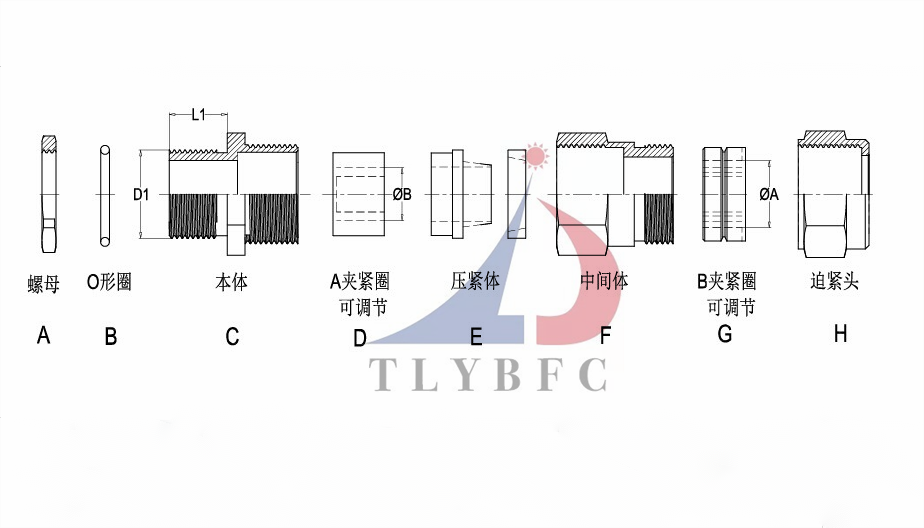

詳細描述
|
規格 Gland size
|
螺紋 Thread
|
螺紋長度 Thread length“L”（mm）
|
電纜直徑Cable diameter（mm）
|
接合長度 Code
|
Hexagon Size
|
小直徑 Min（mm）
|
大直徑 Max（mm）
|
Across flat "G" (mm)
|
Across cormers "H" (mm)
|
|
TLYBFC-EX-BW-0
|
BW-0
|
10
|
12.6
|
16.0
|
23
|
22
|
25
|
|
TLYBFC-EX-BW-1
|
BW-1
|
10
|
15.9
|
19.0
|
26
|
27
|
32
|
|
TLYBFC-EX-BW-2
|
BW-2
|
10
|
20.6
|
26.5
|
29
|
35
|
40
|
|
TLYBFC-EX-BW-3
|
BW-3
|
10
|
26.5
|
33.0
|
32
|
42
|
48
|
|
TLYBFC-EX-BW-4
|
BW-4
|
15
|
34.9
|
40.5
|
36
|
52
|
60
|
|
TLYBFC-EX-BW-5
|
BW-5
|
15
|
44.6
|
51.0
|
45
|
65
|
75
|
|
TLYBFC-EX-BW-6
|
BW-6
|
15
|
57.0
|
67.0
|
50
|
82
|
94
|
|
TLYBFC-EX-BW-7
|
BW-7
|
15
|
68.0
|
79.5
|
60
|
96
|
110
|
|
TLYBFC-EX-BW-8
|
BW-8
|
15
|
74.0
|
83.0
|
65
|
100
|
115
|
|
TLYBFC-EX-BW-9
|
BW-9
|
15
|
82.0
|
91.0
|
69
|
/
|
/
|
|
TLYBFC-EX-BW-10
|
BW-10
|
15
|
93.0
|
100.0
|
88
|
/
|
/
|
